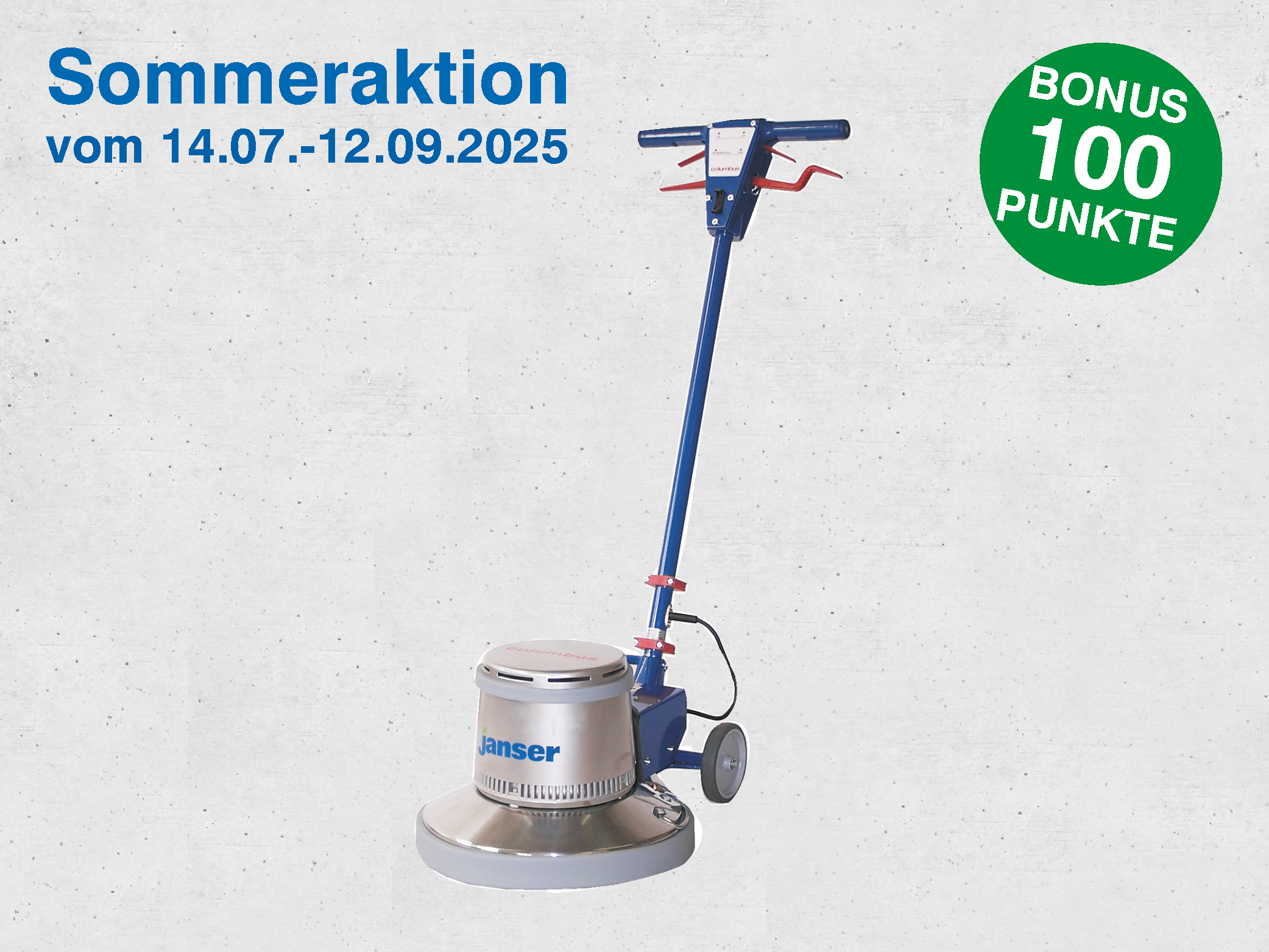

Columbus 145 SH
Art.-No.
112 560 000
1500 watt Columbus single-disc grinders powerfully remove coating residues!
Art.-No.
112 560 000
Product information
Mod.145 SH
1500 Watt The Columbus simply and effectively removes all unwanted subfloor materials.This machine will mill, grind, and sand your floor surface while creating a minimum of dust, helping to maintain a healthier working environment. The strong design and well-built construction of the Columbus ensures long machine life and good reliability.By raising and lowering the lever, the machine glides across the surface in semicircles. All types of plaster, screed, asphalt and adhesive along with small surface irregularities can be removed from the subfloor with ease. The wide range of working plates make the Columbus suitable for all types of floor surfaces. The machine is unsurpassed in saving time and effort, with working plates, discs and brushes changeable in seconds.The 3-gear planetary transmission is designed to cope with the toughest tasks. Included with Model 135, 145 and 155.Sand in a nearly dust-free environment with the MULTI-VAC dust extraction ring and JANVAC 1600 dust extractor. Grinding plates and dust extractors are sold separately.Technical Data
| Power: | 1500 W |
|---|---|
| Power supply: | 230 V |
| Speed: | 140 rpm |
| Weight: | 42 kg |
| Working width: | Ø 375 mm |
Scope of Delivery
All Columbus models are supplied without sanding discs and without extraction system
Downloads
Product downloads are only available for registered users.
Special features
Ausgestattet mit großen Rädern für besten Fahr- und Transport-Komfort auf der Baustelle. Schonendes Überwinden von Treppenstufen ohne Beschädigungen.
Der Absaugring Multi-Vac IV ist flexibel, robust und sofort einsatzbereit - ohne Befestigung an der Maschine. Der LED-Lichtring sorgt für eine optimale Ausleuchtung des direkten Arbeitsbereichs der Schleifmaschine.
Ausgestattet mit großen Rädern für besten Fahr- und Transport-Komfort auf der Baustelle. Schonendes Überwinden von Treppenstufen ohne Beschädigungen.
Der Absaugring Multi-Vac IV ist flexibel, robust und sofort einsatzbereit - ohne Befestigung an der Maschine. Der LED-Lichtring sorgt für eine optimale Ausleuchtung des direkten Arbeitsbereichs der Schleifmaschine.
Passendes Zubehör für unsere Columbus
Passendes Zubehör für unsere Columbus
New
Art.-No.
113 724 000
Effective dust extraction without attachment to the machine – flexible, robust and ready for immediate use.
Suitable for Columbus single-disc machines 135 SH, 145 SH and 155 S – as well as for many other brands with a working diameter of 375–410 mm. Special features: Suitable for sanding discs up to max. Ø 410 mm Suitable for hose connections Ø 38 mm Flexible use – no machine mounting required Durable brush for optimal dust extraction With light gray impact guard
Art.-No.
112 882 000
Version:
for Columbus Mod.145 SH, 155 S und Speedtronic
Dreischeibenteller TRIVO-DISC II inkl. Kevlarmanschette 120 mm
Art.-No.
112 300 002
Diameter:
375 mm

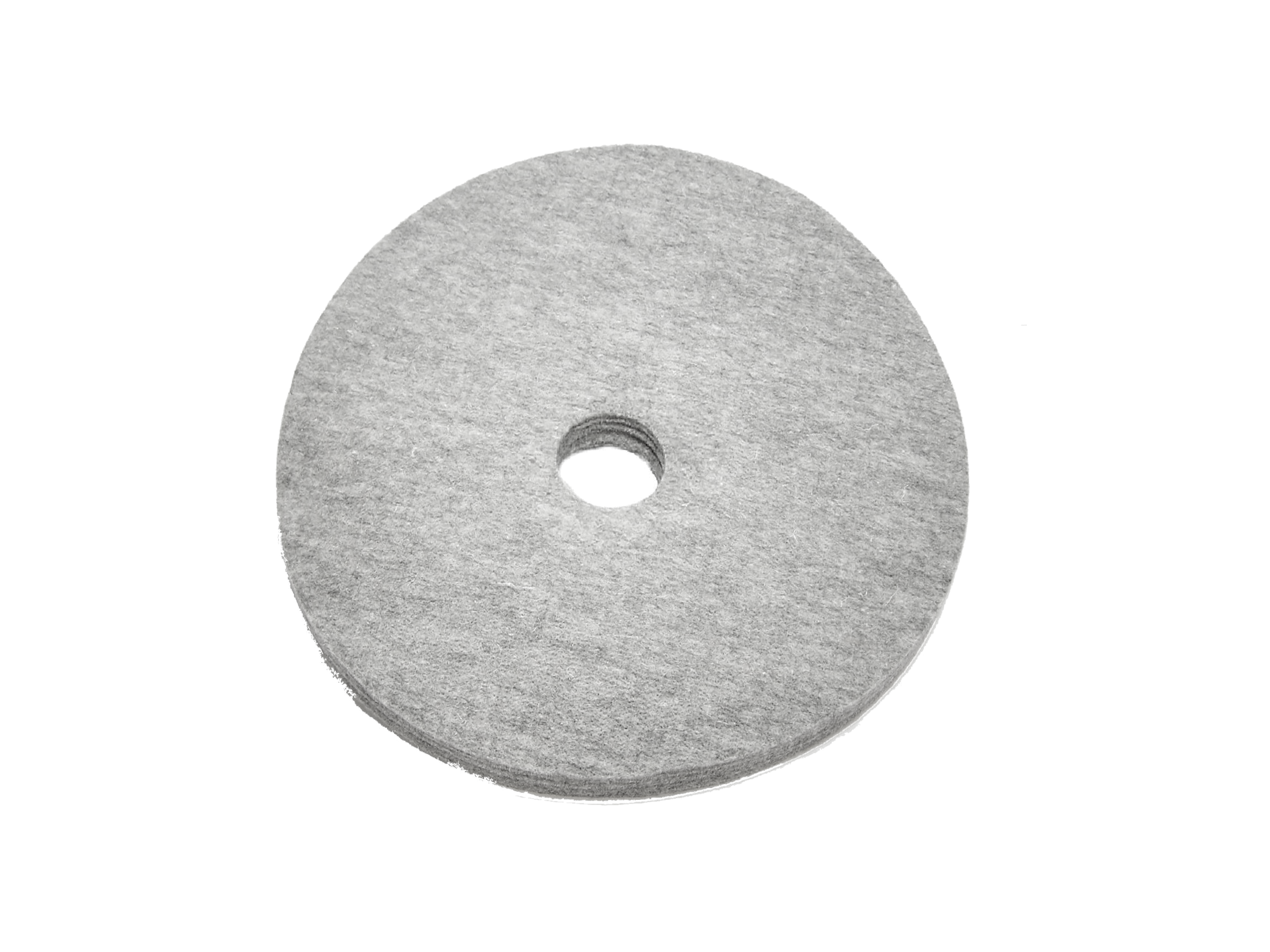

Grinding Plate with Felt For holding sandpaper discs, alsosuitable for compressing adhesive onPVC/Linoleum type floor coverings. Ø 375 (14 ¾") without distance ring for Mod. 135, 145, 155 & SPEEDTRONIC
Art.-No.
112 334 100
Delivery Scope:
with distance ring
Universal Plate For use with sandpaper discs, sandinggauze discs and abrasive pads. Ø 375 (14 ¾") without distance ring for Mod. 135, 145, 155 & SPEEDTRONIC
Art.-No.
112 381 100
Columbus DIA-DISC Base Plate Base plate without segments
Art.-No.
464 500 100
Diamond Sanding Disc The high-performance tool for the TRIVO-DISC PlateFor effective sanding of very hard varnishes or coatings for example on wood flooring,such as 2-K Lacquer, DD- Lacquer, UV or LED Coatings. Grit 30/40 blue for TRIVO-DISCI + II. 3 pcs are needed for a TRIVO-DISC
